Revisions of documents and drawings are common in construction. This article covers how to compare two versions of the same PDF document, drawing, or model directly in Dalux.
Table of contents
- Video
- Compare two versions of a PDF document
- Compare two versions of a drawing
- Compare model versions in the Dalux desktop app
Video
Compare two versions of a PDF document
If you have multiple versions of a PDF document in Box, you can compare these files directly in Dalux to detect any changes.

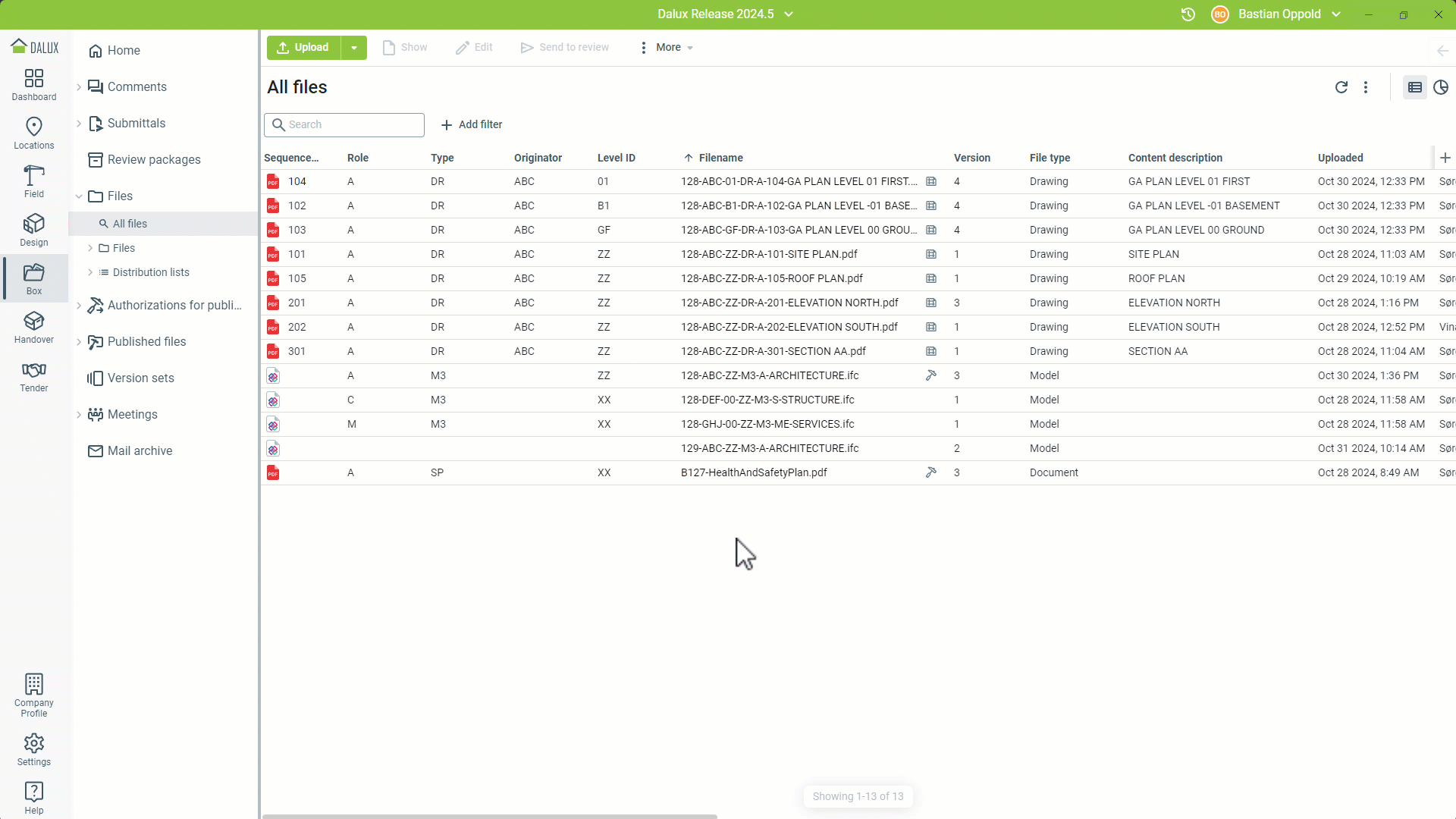

Open any document in Box that fulfills these criteria and click on Compare versions. Doing so will open the current and the previous version of that document.
You can change the versions you want to compare, by clicking on the selector at the top of the of the documents.
Scrolling through a multi-page document or zooming into the document is done simultaneously for both versions, so you can always compare the correct information.
If you want to compare different parts in the versions, toggle the lock at the bottom to unsynchronize both versions. You can then navigate through the versions independently. Toggle the lock again to synchronize the versions again.
(Click the image to enhance)
Compare two versions of a drawing
If the project has Dalux Box Pro, it is possible to compare two versions of the same drawing directly in Dalux. To do so, open a drawing with more than one uploaded version.

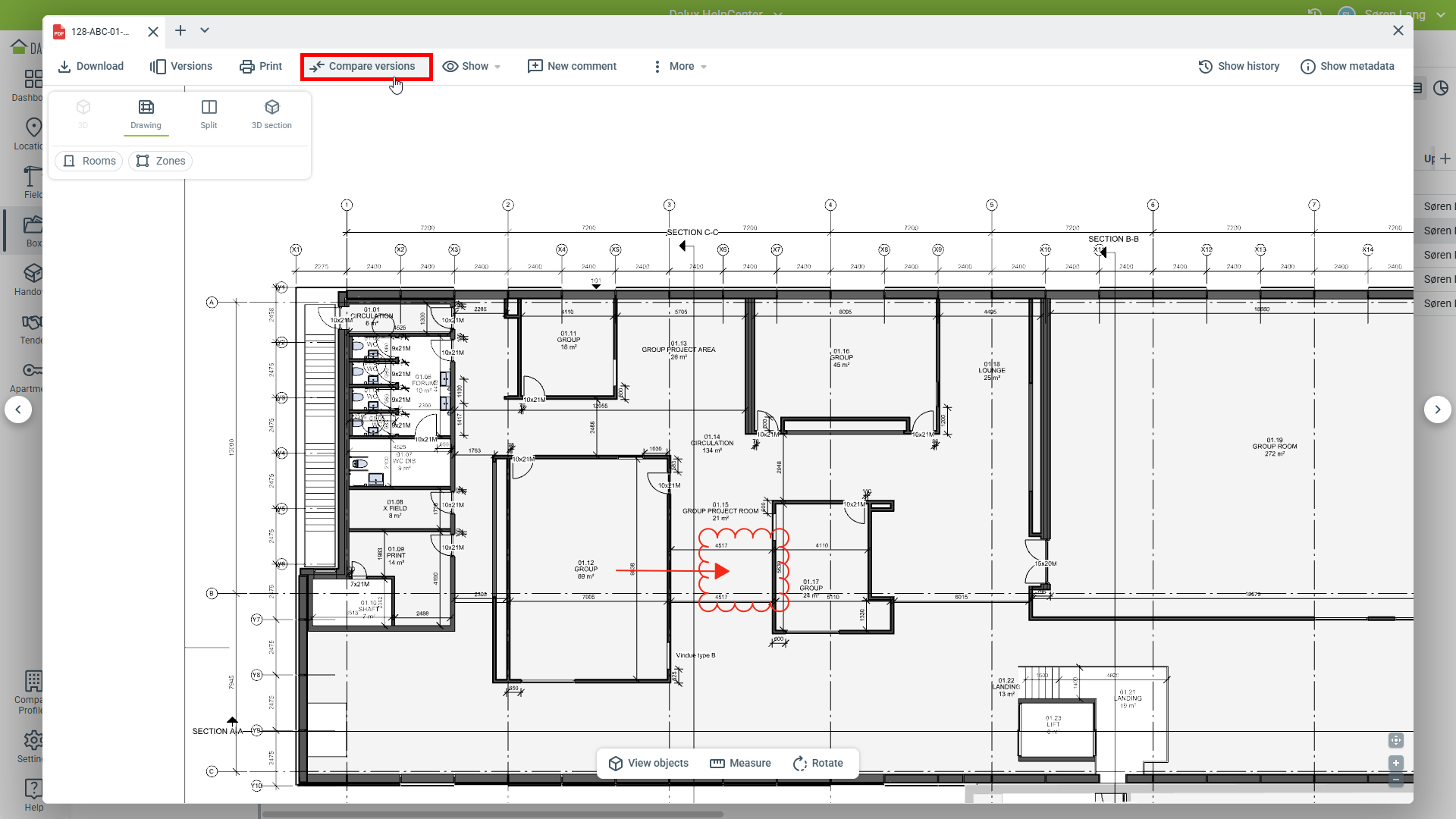

Then click Compare versions.
(Click the image to enhance)

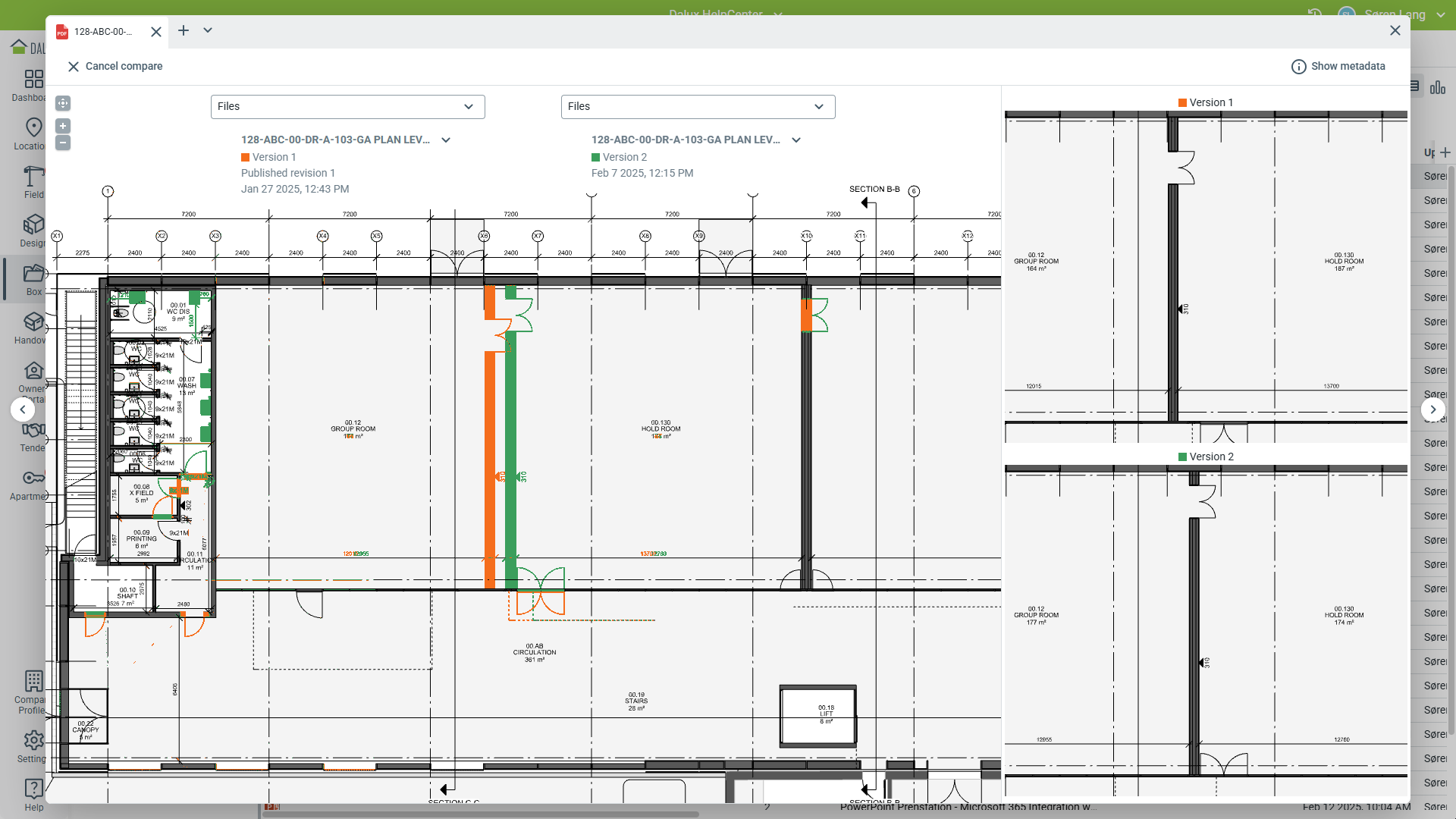

Dalux will by default open the latest two versions and compare them. The newest version is green, and the previous one is red. Change the version by clicking on the drop-down button next to each version.
Changes between the versions can then be easily seen, with the addition of red or green lines.
If there are no changes between versions, there is no change of color.
(Click the image to enhance)
Compare model versions in the Dalux Desktop App
Technical information
To compare your 3D models, you will need to use the Dalux Desktop application on your computer. Comparing models is not available on the web client. You can read more about how to download the application here: Downloading the Dalux desktop app
Either find the building in
Settings
Locations
Buildings or locate the building files in
Box.
You can only compare models with two or more versions.

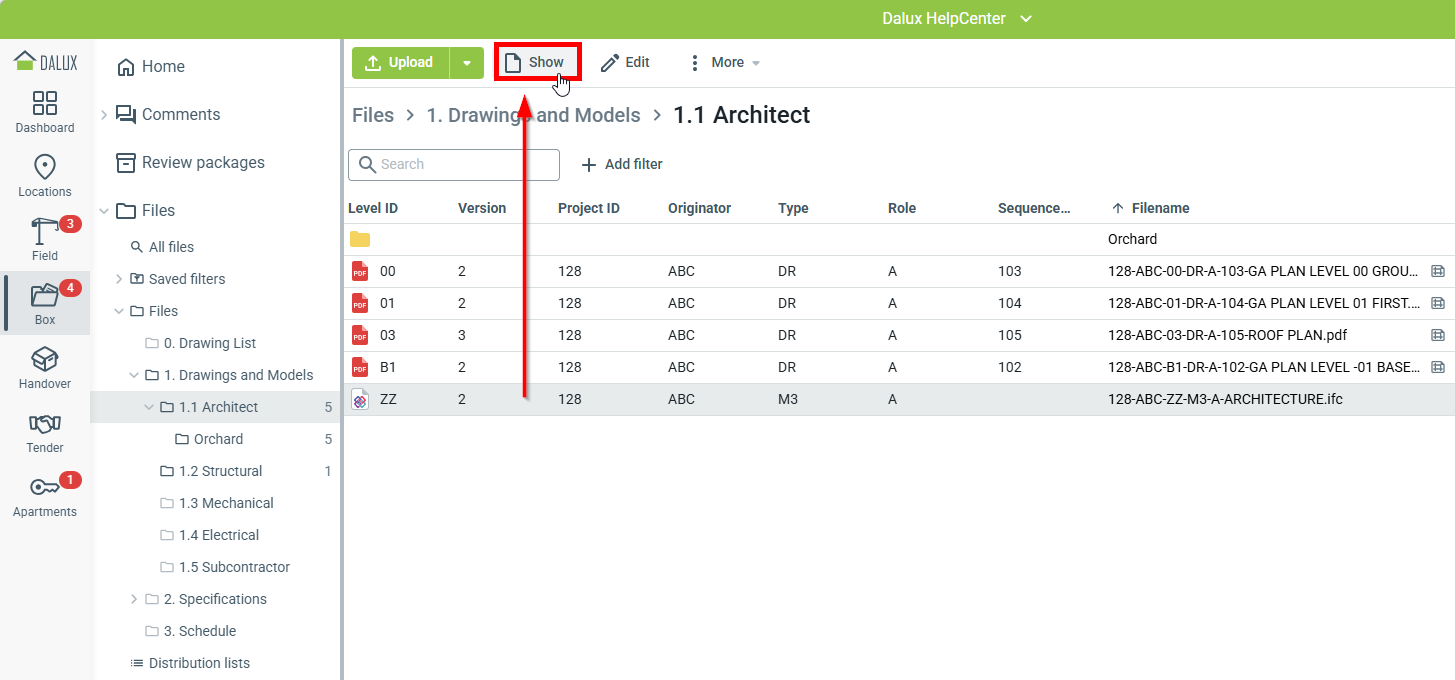

Select the model you wish to compare and then click Show.
(Click the image to enhance)

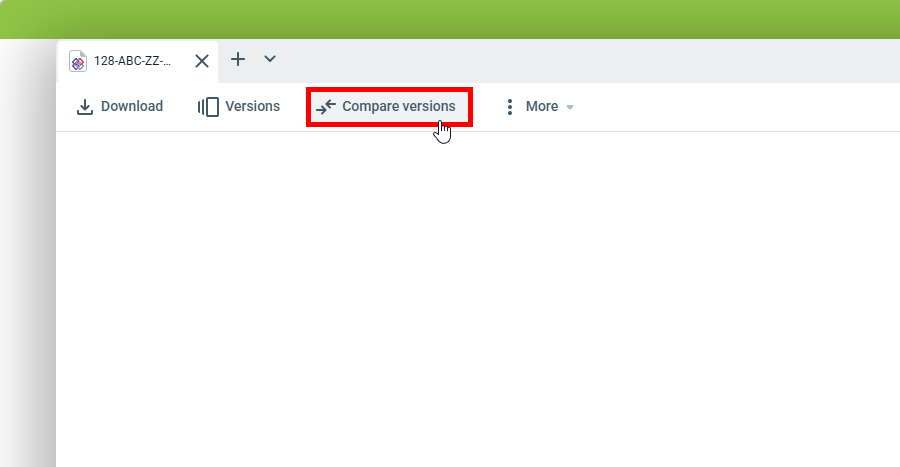

This opens the model, and you can then click Compare versions.
(Click the image to enhance)

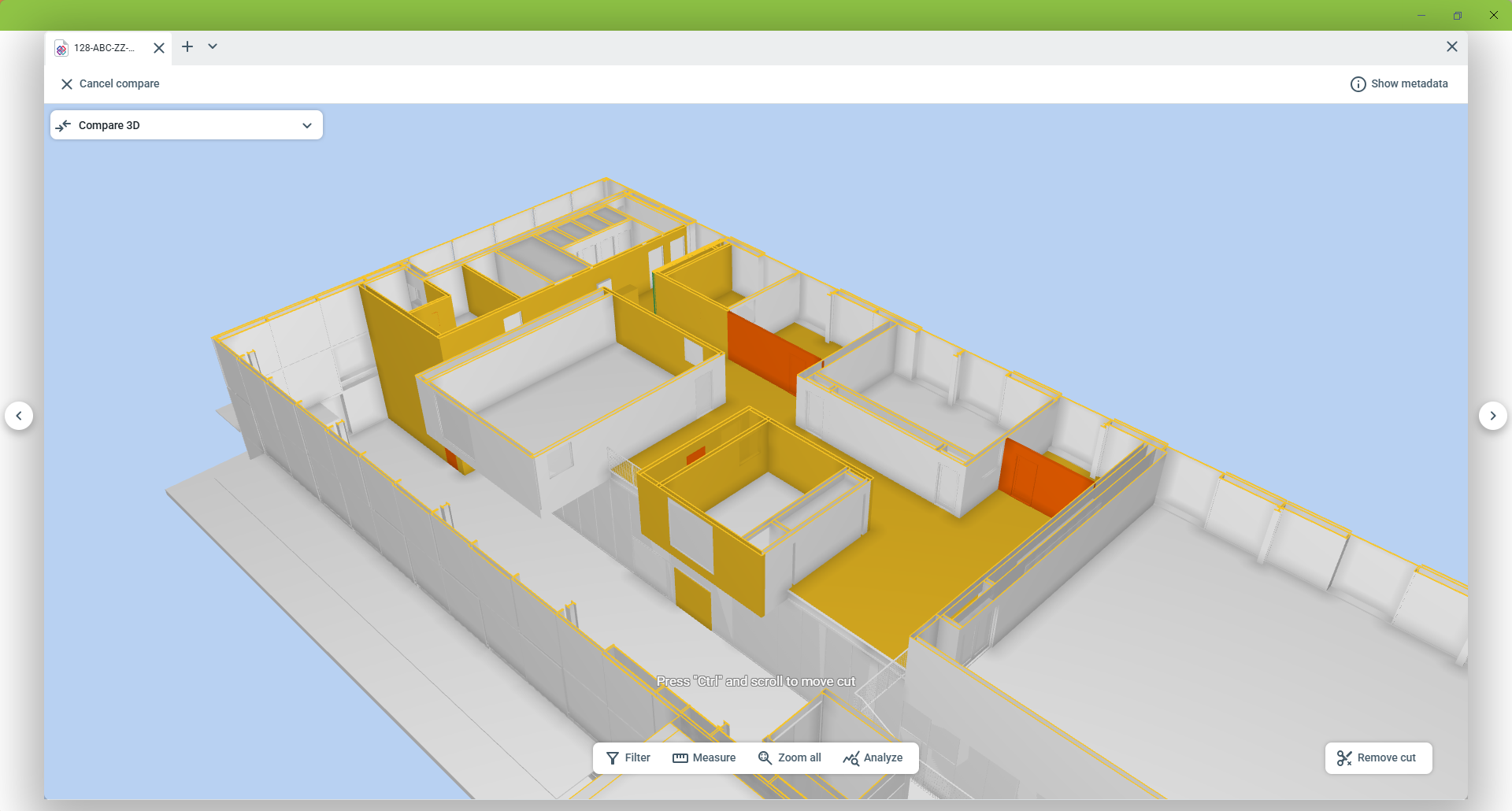

Now you can compare the different versions of the models. In the left menu, you can select which versions to compare. You can switch filters on and off or change to a wire frame view.
(Click the image to enhance)

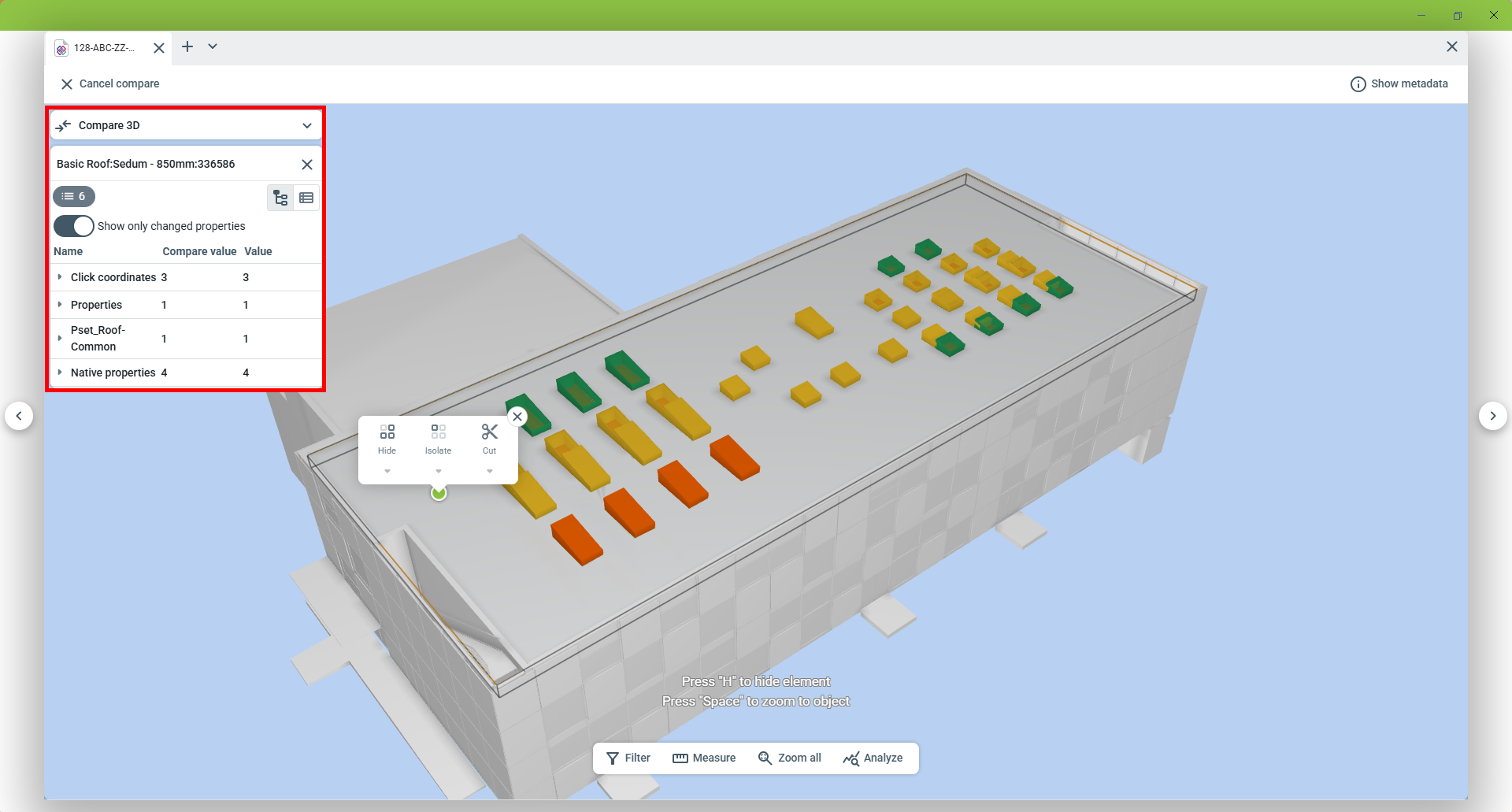

You can click on an element and see what exact properties have changed.
(Click the image to enhance)
