As a design manager, design coordination involves overseeing and coordinating the work of various design disciplines to ensure that all project elements integrate smoothly.
This requires facilitating collaboration between architects, engineers, and consultants, resolving design conflicts, and ensuring the design meets project requirements, schedules, and standards.
(Click the image to enhance)
Direct annotation of drawings, documents, and models, as well as the use of communication channels in Dalux Box, ensures that all relevant parties are involved in discussions and can actively contribute to solving problems.
Create and send issues
Before creating a new comment, be sure to show comments from other participants to avoid duplicates, as comments can be made simultaneously.
(Click the image to enhance)
Whenever an issue needs to be addressed, it is best to make it clear where it came from. So, when creating a comment, be sure to reference the drawing, document, or model with a clear annotation.
(Click the image to enhance)
Separate different issues into multiple comments so that the recipient knows exactly what to do.
Remember that everyone in the communication channel can see and respond to the comments, not just the user or user group to whom you assign the comment.
Use Duplicate to quickly make a copy of an existing comment and then

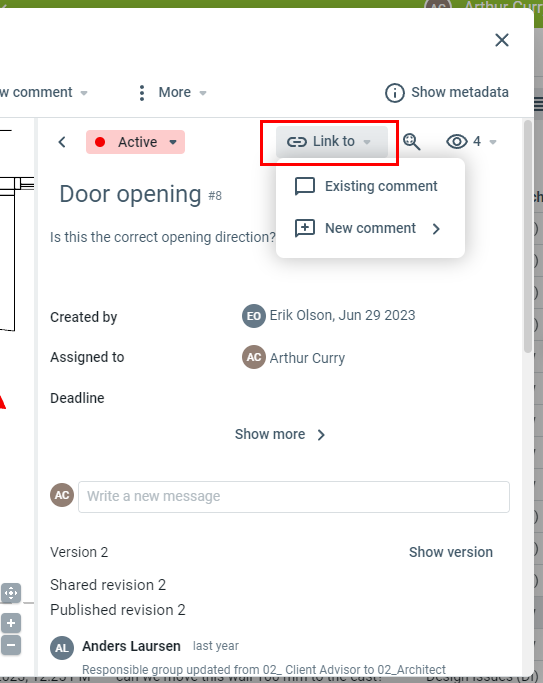

Link to, to link comments together if they are related.
|
(Click the image to enhance) |
(Click the image to enhance) |
Read this article on how to create comments in Dalux Box: How to use comments.

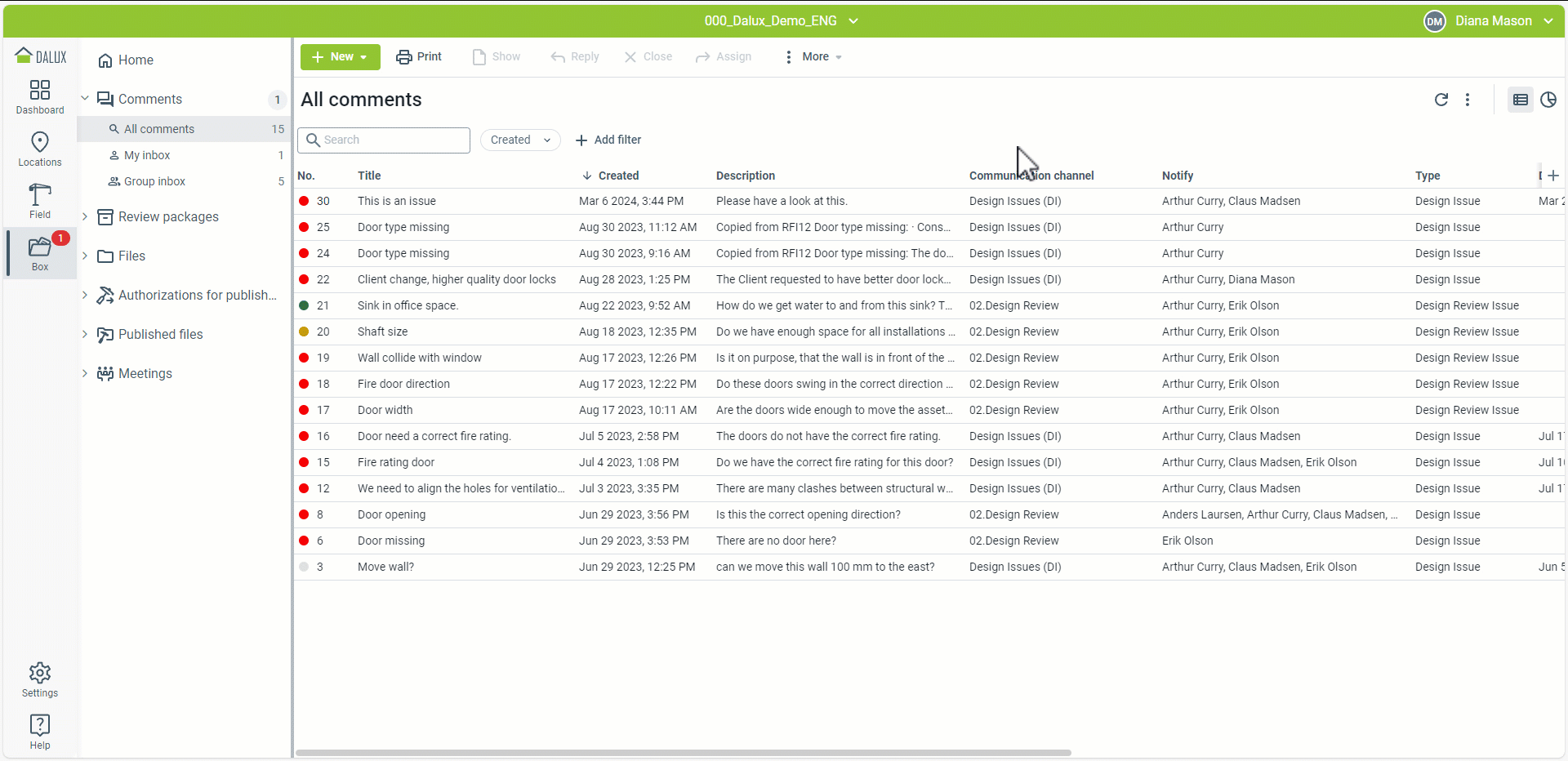

Coordination overview
With the entire team working online at the same time, the design manager can use filters and graphs to monitor progress and ensure that no issues are overlooked or grow into bigger problems down the road.
(Click the image to enhance)
Design coordination administration
The Dalux administrator needs to set up a communication channel with a specific comment type to facilitate the design coordination of a project.

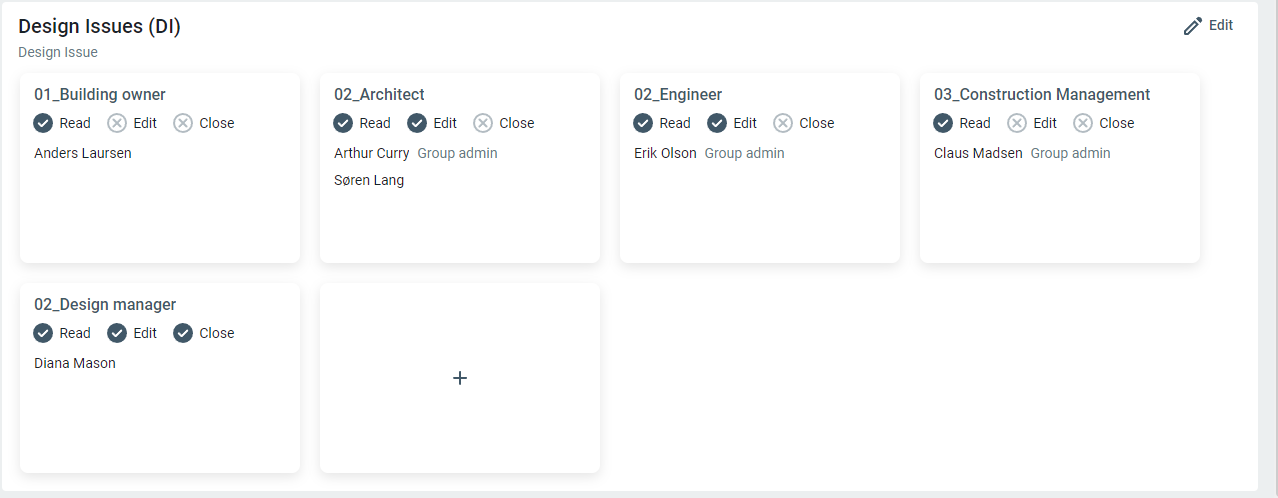

Communication channels
Create a communication channel in which all participants involved in design coordination can participate, and make sure that only authorized user groups can close comments.
(Click the image to enhance)

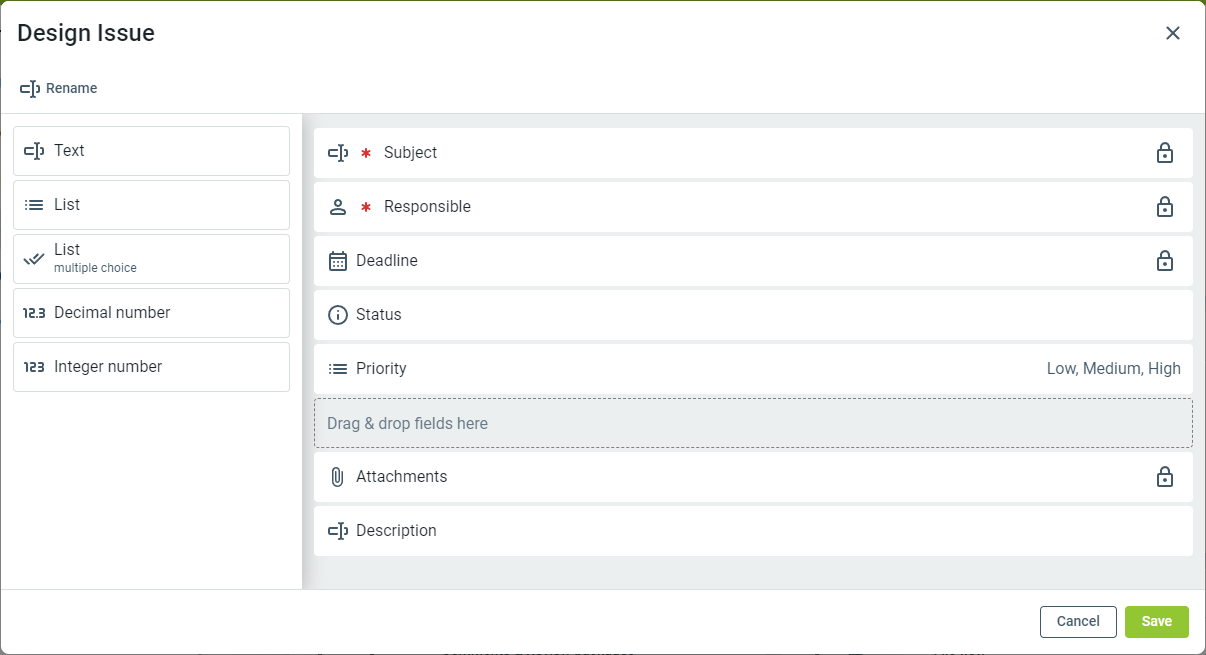

Comment type
Create a comment type that is used only for design coordination so that other processes do not get mixed up in the coordination. Since this comment type is for day-to-day coordination, don't make it too complicated with many mandatory fields.
(Click the image to enhance)
Read this article on how to setup communication channels: How to set up comments.
