Upload IFC model files and 2D drawings

This article will cover how to upload IFC model files and 2D drawing files to Dalux and how to map drawings to the IFC model.

Table of contents

  1. Video
  2. Upload IFC/3D model files
  3. Add levels to a building
  4. Assign and map 2D drawings to levels

Video

Upload IFC/3D model files

 User rights

To be able to upload a building model, you need to be a project administrator, or project planning manager, or have permission to edit buildings in your user group.

To upload an IFC model to Dalux go to

Settings  Locations Buildings Add Enter a name for the building 'Add building':

(Click the image to enhance)

Then click the 'Upload' button and find the files you wish to upload.

During the upload you can set status, Box folder, disciplines and metadata for the different files.

Dalux automatically assigns the file type.

When you are done, click on 'Upload' to upload and process the files.

(Click the image to enhance)

Note

You can also use Dalux plugins to directly upload models and drawings from various modelling software. For more information, read the article on the plugin you are interested in using in this section.

Add levels to a building

When the IFC file has been uploaded, it is time to add levels to your building.

Either click Add Level or 'Add levels' in the yellow banner.

When adding levels, you can:

  1. Choose to add levels from the model, as Dalux can read levels directly from the model or
  2. Add your user-defined levels

It is recommended to use the BIM model levels. When doing so, you cannot change the elevation in Dalux

(Click the image to enhance)

The added levels will then be displayed on the left-hand side of the window. By default, Dalux will use a automatic level cut from the BIM model.

If you have uploaded drawings to the building as well, these can be mapped to the levels.

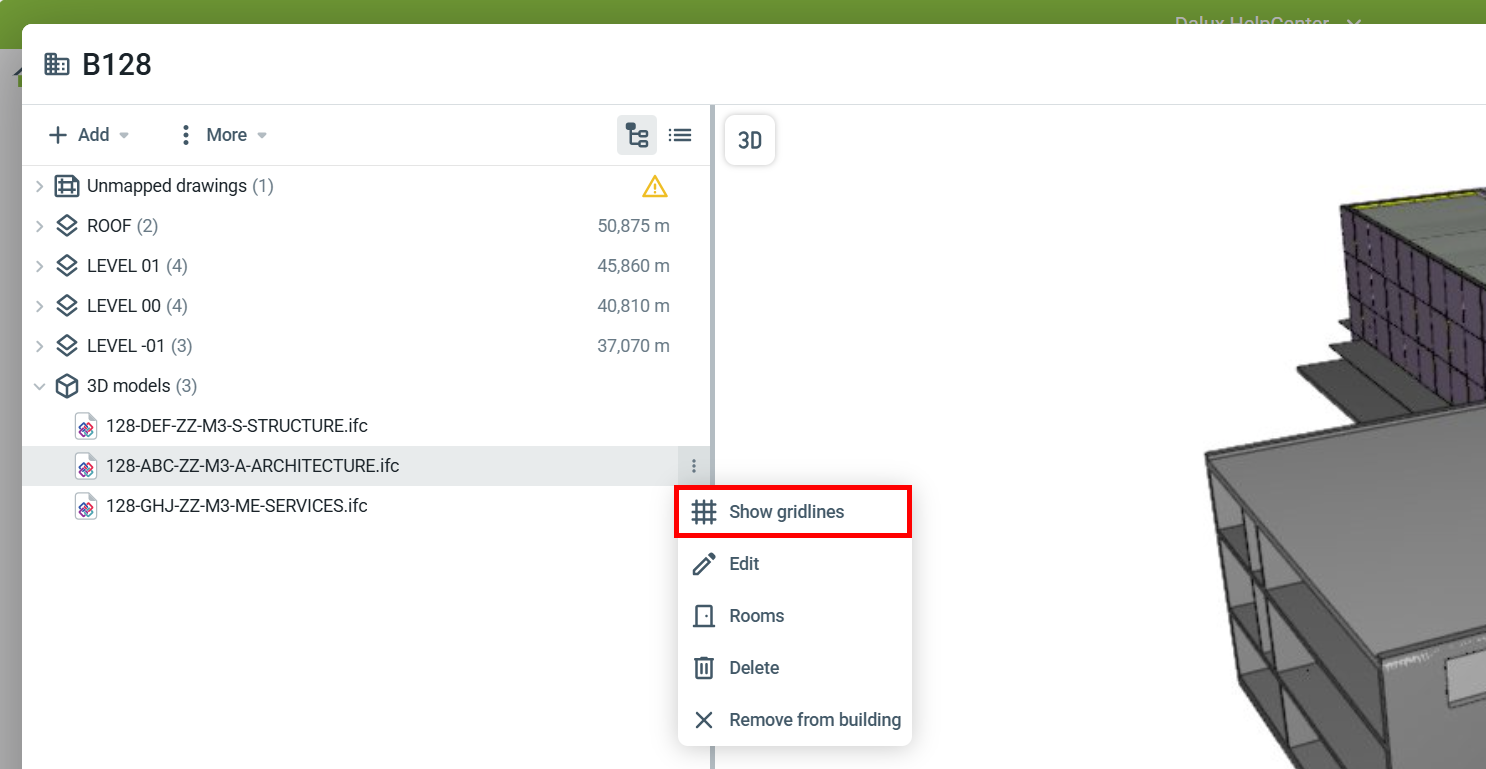

(Click the image to enhance)



Assign and map 2D drawings to levels

With the levels added to the model, drawings uploaded to the building can now be mapped.

If you have not yet uploaded drawings the building, you can do so from:

Add From your computer/From Box.

Your 2D drawing files will now be uploaded to Dalux but will need to be mapped to a level to be used properly. You can find the unmapped drawings in their own folder:

(Click the image to enhance)

Map drawings to levels

When the drawings have been uploaded to Dalux, assign the drawings to their respective levels, by either:

  1. Dragging and dropping the drawings on the respective levels
  2. Clicking to the right of the drawing Map to 3D

This will open up a new window where you will have to map the drawing to the level.

To map the drawing, you need to select reference points A and B on the drawing and then choose the same point A and point B on the level so that they match up.

Important!

To get a more precise mapping, make sure to be as accurate as possible when setting reference points. The larger the distance between these points, the better the mapping will be.

The combined display on the right of the window shows how precise the current reference points are.

(Click the image to enhance)

As shown at the end of the GIF, you can make your newly mapped drawing the default one. Setting a drawing as the default causes it to be the first drawing shown for a given level.

(Click the image to enhance)

Map drawings vertically

Dalux enables you to add sections or views to your model as well. Similar to adding drawings to a level, select the drawing and click on

to the right of the drawing  Map to 3D 'Map vertically'

(Click the image to enhance)

Vertical mapping consists of three steps:

  1. Place the drawing in the correct orientation
  2. Link the drawing to the model and scale
  3. Adjust if necessary

First, select a vertical surface in which orientation you want to place the drawing. Select Place drawing when you are satisfied.

Link the drawing to the model, by selecting either

  • 2 reference points on the drawing, then 2 reference points in the model, or
  • by selecting 1 reference point each if you added a scale factor.

(Click the image to enhance)

To adjust the positioning of the drawing, use to move it while keeping the orientation and scale. This can help you to place a cut in the exact position where it was created.

Note

Vertically mapped drawings can both be displayed in the drawing and the 3D section of Locations. This is possible on the desktop as well as the Dalux mobile app. If you want to learn more about navigating in the different views in Locations, you can read this article: Navigate in Locations on desktop.
