Update drawing and document versions

Revisions of documents and drawings are common in construction.  This article covers different ways of updating versions in Dalux Box.

Table of contents

  1. Video
  2. Update drawings and documents
  3. Viewing and downloading old versions of files

Video

Update drawings and documents

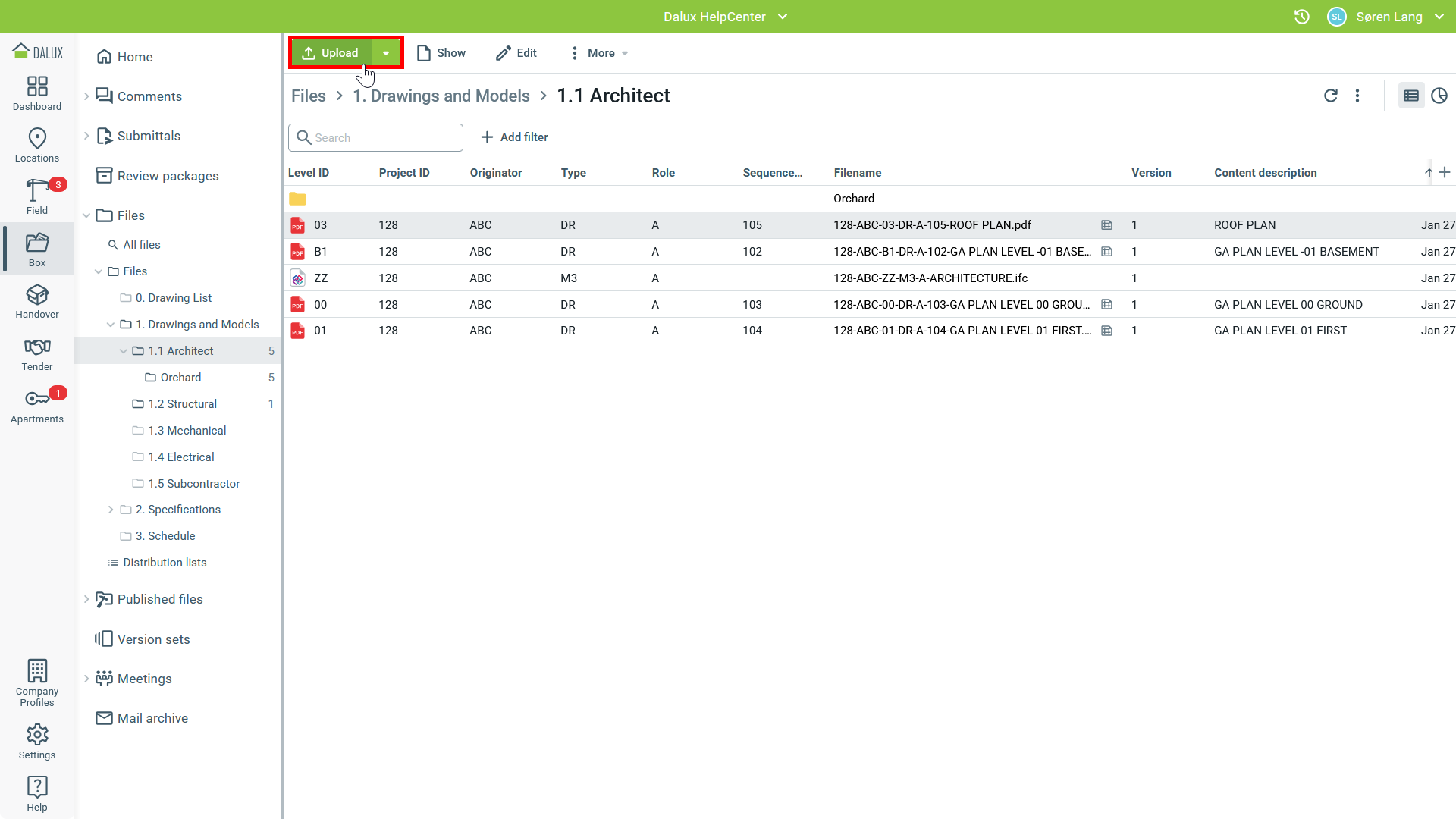

To update files in Dalux Box, find the folder where the file(s) are located in the folder structure. Files can be drag-and-dropped from File Explorer, or you can click Upload.

(Click the image to enhance)

If you upload a file with the same name as an existing file in Dalux, a new version is automatically created.

(Click the image to enhance)

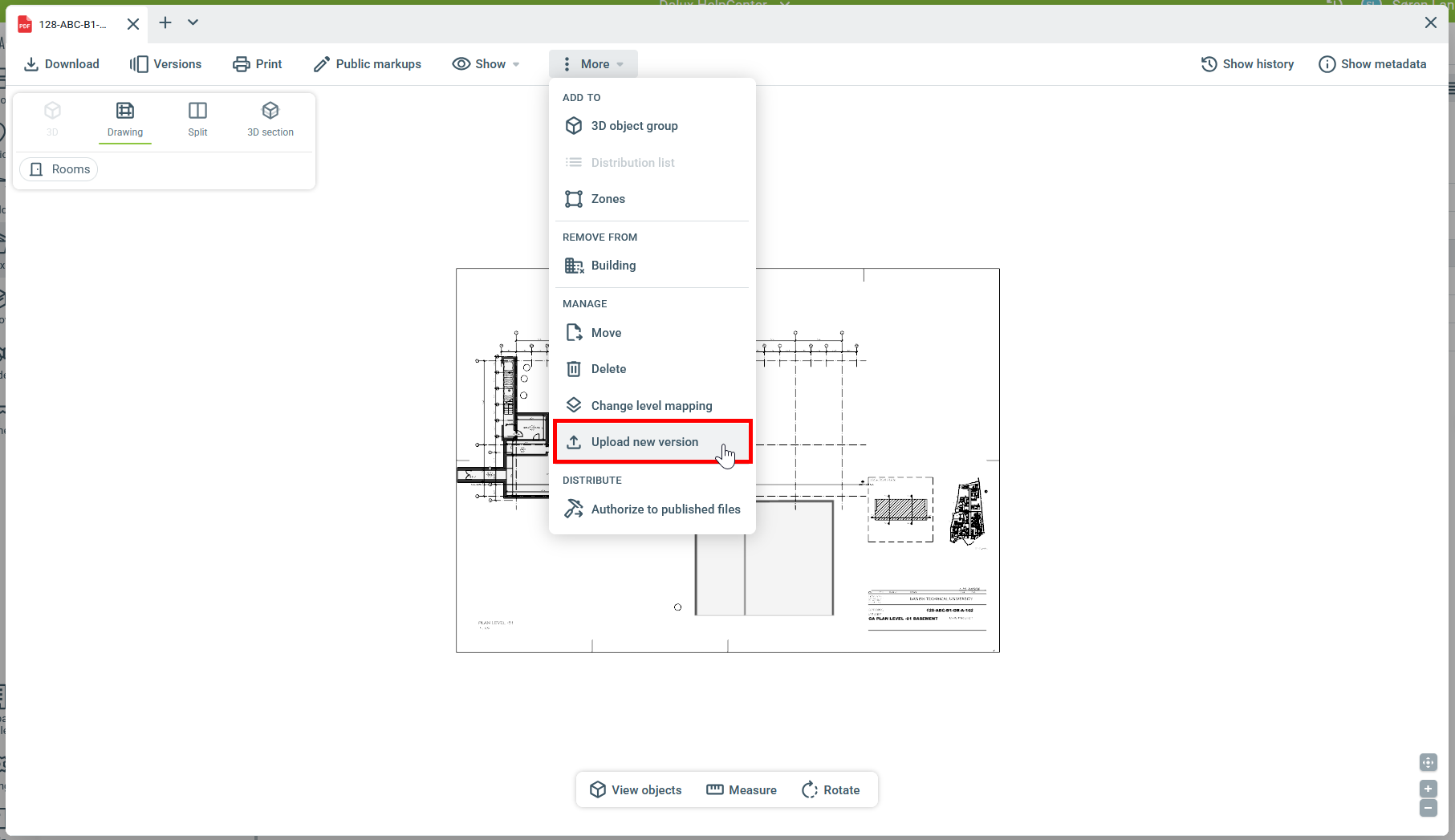

Files can also be updated by opening the file and going to More. Then click Upload new version.

NOTE: When this method is used, if the file name of the uploaded file is different, the file name will also be changed in Dalux.

(Click the image to enhance)

Viewing and downloading old versions of files

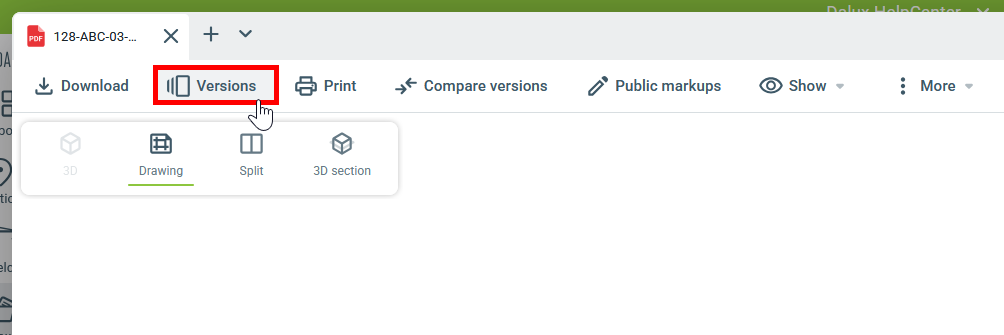

All versions can be seen by opening a file and clicking Versions.

(Click the image to enhance)

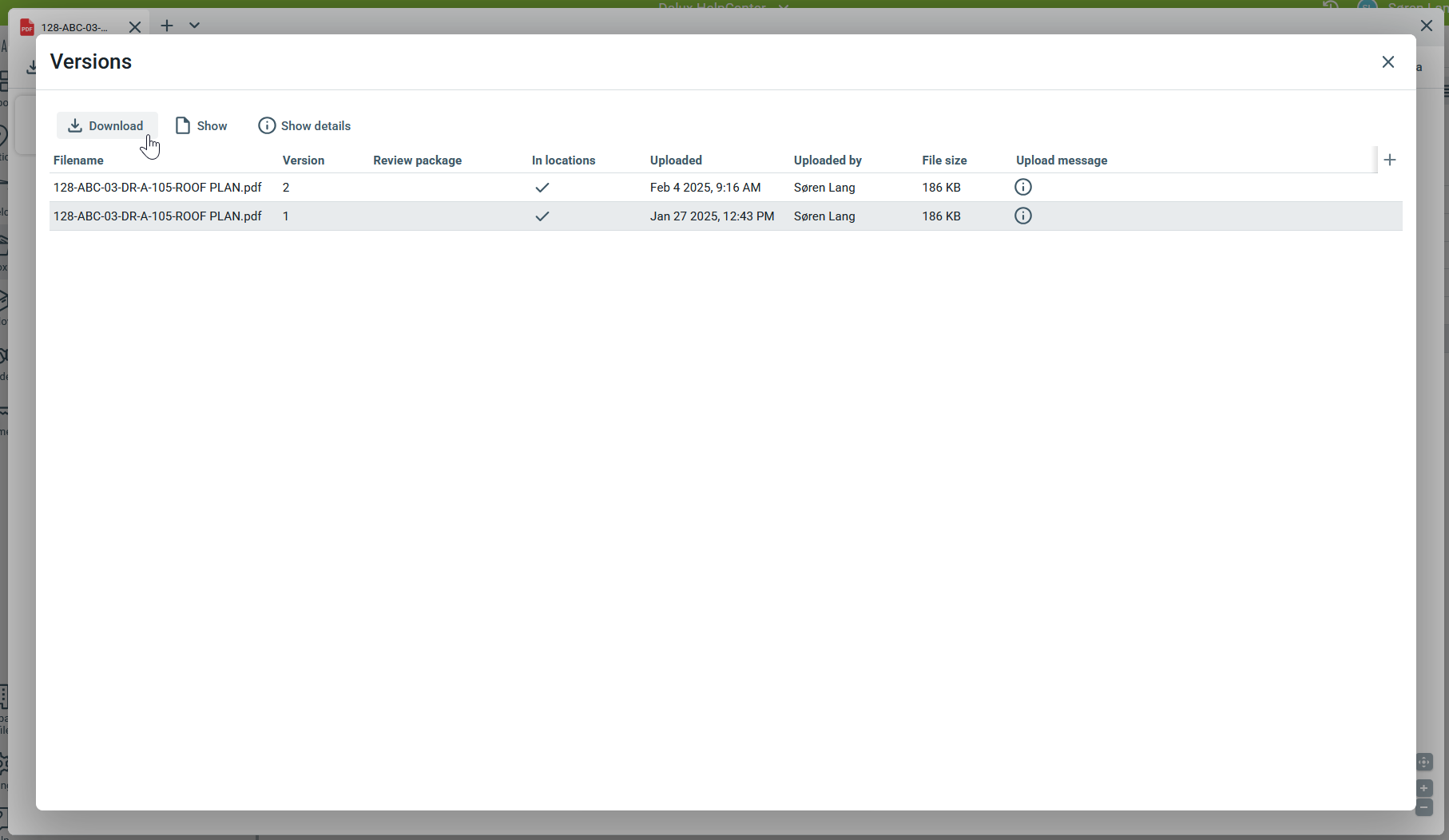

All versions of the file will be shown in the list view. If the project uses multiple file areas, you can switch between these. You can

  • Download - Download a copy of the version
  • Show - Open the file directly in Dalux
  • Show details - See details for the version, such as actions, paths, upload date

(Click the image to enhance)

 Read more

If you want to learn more about using comparing files and models, read this article: Compare versions.
