This article will explain how to set up and use statuses in Dalux Box. Statuses Status in Box is a form of metadata for files in your project that need to be activated and can also be integrated with file areas and file flows. The feature is used to keep track of the status of your files.
Table of contents
The status metadata is closely tied with file areas and file flows as it can be used in the file flows as triggers and the status of a file can be set to change when it is approved/authorized.
If a file is assigned a specific status (e.g., ready for review), it can trigger a file flow, causing the file to change its status and initiate the review process. After the review, the file can be moved to another file area.
In addition, the status of files can be manually checked to see their progress between file areas, even if file flows are not being used. Moreover, the status metadata field can be customized according to your preferences, allowing you to set it up as desired.
(Click the image to enhance)
How to set up status
To activate checklists, go to
Settings
Box
Add features
'Statuses'
Activate.
To make use of status you must first set it up.

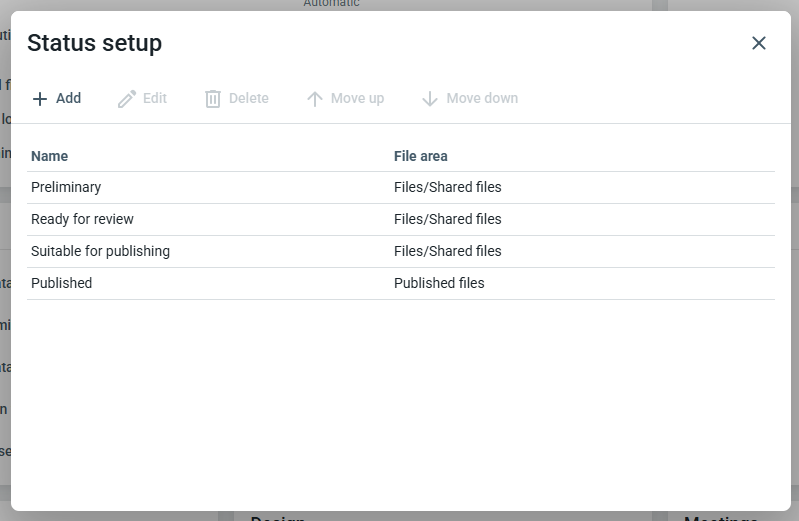

To create status, go to Settings
Box
'Status setup':
(Click the image to enhance)
From this window, you can add, remove, and edit your status.

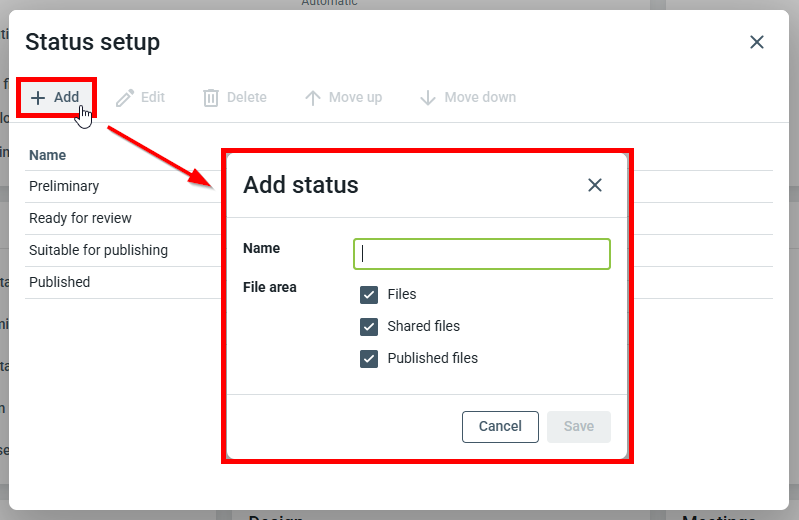

Click Add to start creating a new status. Choose a name for the new status and optionally a file area if you have that feature activated.
(Click the image to enhance)
For the file areas, you can choose between
- All areas
- Files/Shared files
- Published
If set to 'Files/Shared files' the status can only be set in those two file areas and it will not be possible to have files with this status in Published Files.
If set to 'Published' you will not be able to set this status when uploading files or when changing the status of files in Files or Shared files.
Thus, this status can only be selected when approving or authorizing a file.
Status setup in file flows
Technical information
You need to have file flows activated to use status in them. You can read more about file flows in this article: How to set up File flows.

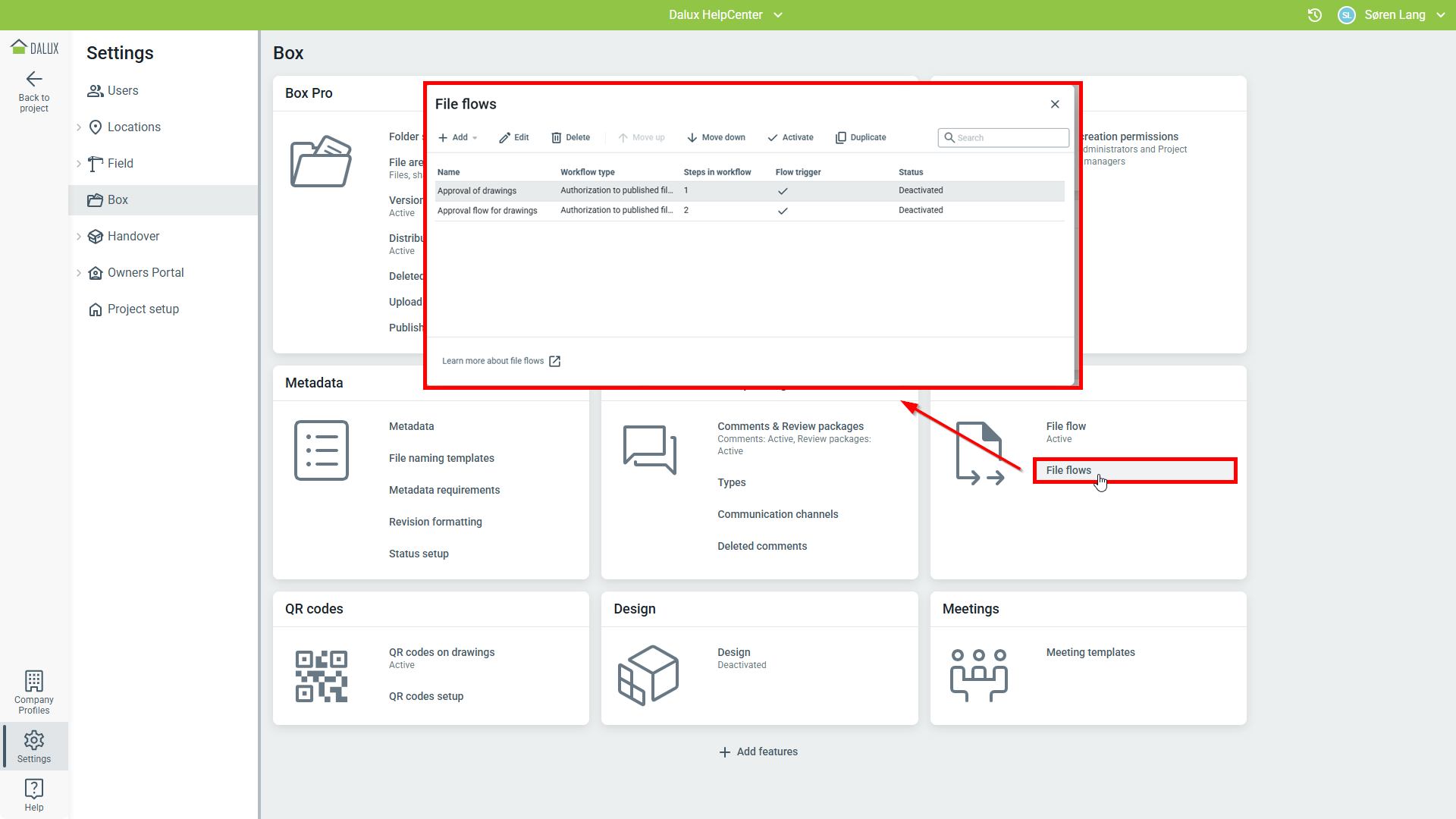

To use statuses with your file flows, go to Settings
Box
'File flows'
Select a flow
Edit:
(Click the image to enhance)
When editing the file flow, you can set the status as a flow trigger. You can also set the file flow to change the status of a file when the file is then approved or authorized:
(Click the image to enhance)

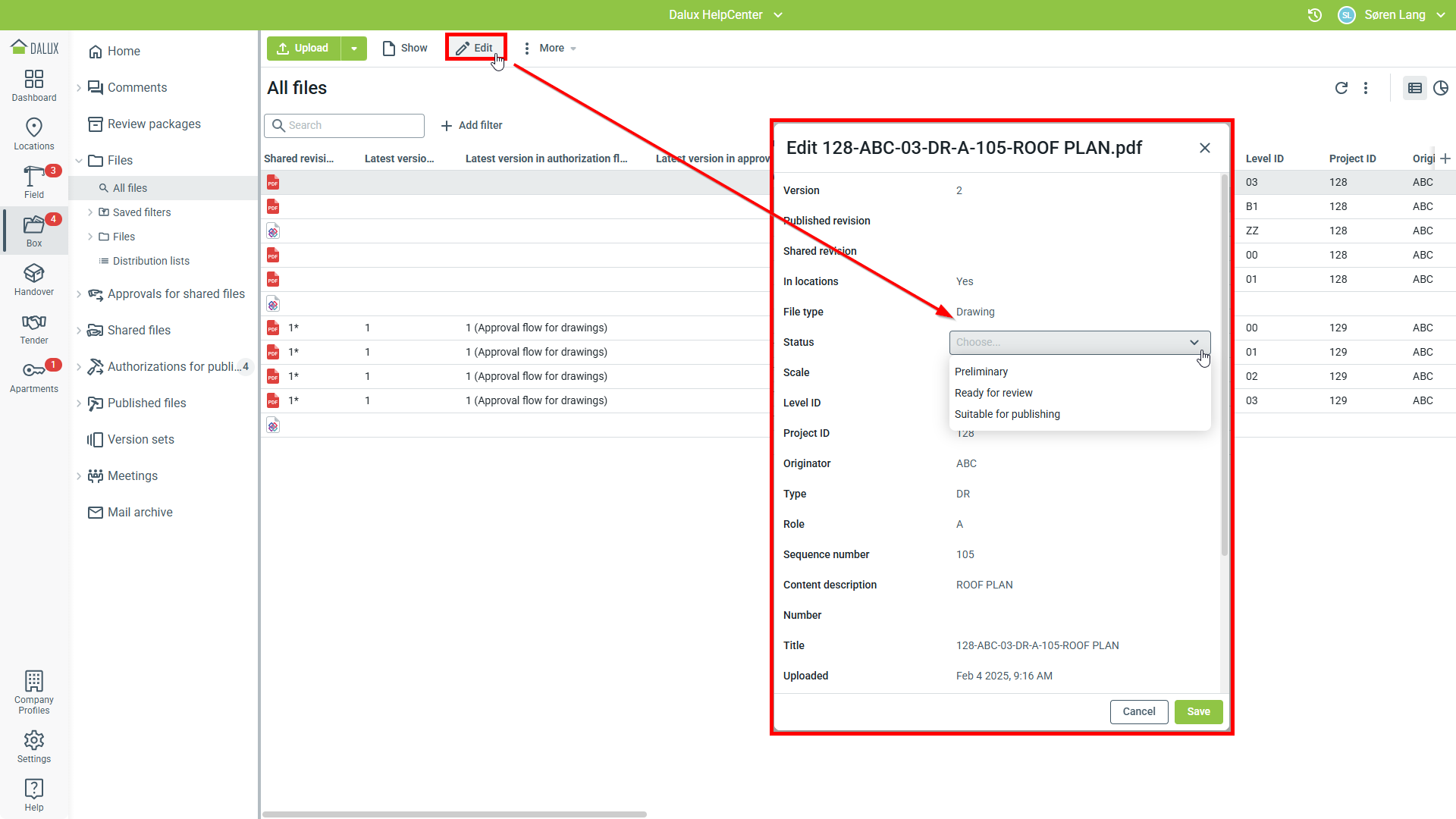

How to change the status of a file
To change the status of a file to e.g., start a file flow, go to
Box
Locate the file you are looking for
Select the file(s)
Edit
'Status'
Choose the status from the list:
(Click the image to enhance)
